HTML5 Canvas

Canvas and Context

<canvas width="300" height="300"></canvas>

2D Context

let canvas = document.querySelector('canvas');
let c = canvas.getContext('2d');

or in older browsers

if (canvas.getContext) {
  var c = canvas.getContext('2d');
}

WebGL Context

const canvas = document.querySelector("canvas")

const gl = canvas.getContext("webgl")

function drawIn3d() {
  webglUtils.resizeCanvasToDisplaySize(gl.canvas)

  const primitive = gl.TRIANGLES;

  gl.drawArrays(primitive, 0, 5)
}

WebGL Libraries

  • three.js
  • PIXI.js

Pointer Lock

canvas.requestPointerLock = canvas.requestPointerLock || canvas.mozRequestPointerLock;
document.exitPointerLock = document.exitPointerLock || document.mozExitPointerLock;

document.addEventListener("pointerlockchange", lockChangeAlert, false);
document.addEventListener("mozpointerlockchange",lockChangeAlert, false);

canvas.addEventListener("click", canvas.requestPointerLock)
closeButton.addEventListener("click", document.exitPointerLock)

Responsive Canvas

function setupCanvas(canvas) {
  const dpr = window.devicePixelRatio || 1;

  const rect = canvas.getBoundingClientRect();
  canvas.width = rect.width * dpr;
  canvas.height = rect.height * dpr;

  var ctx = canvas.getContext('2d');
  ctx.scale(dpr, dpr);
  return ctx;
}

var ctx = setupCanvas(document.querySelector('canvas'));
// ...

Styling

Colours

c.strokeStyle = "rgba(255,0,0,0.6)"
c.strokeStyle = "#fae432";
c.fillStyle = "#fae432";

Shadows

c.shadowBlur = 6;
c.shadowOffsetX = 6;
c.shadowOffsetY = 6;
c.shadowColor = "orange";

Canvas elements

Text

c.fillText("Hello", x, y);
c.strokeStyle = "#fae432";
c.fillStyle = "#fae432";

Rectangles

c.fillRect(x, y, width, height);

Line

c.lineWidth = 5;
c.beginPath();
c.moveTo(50,50);
c.lineTo(100,40);
c.stroke();

Arc and circle

c.beginPath();
// c.arc(x,y,r,startAngle,endAngle,drawCounterClockwise);
c.arc(100,100,30,0,Math.PI,false);
c.stroke();

Bezier curve

c.bezierCurveTo(cp1x, cp1y, cp2x, cp2y, x, y)

Looping draw commands

let x = 0;
let y = 0;
for (let i=0; i<10; i++) {
  x = window.innerWidth*Math.random(); // Math.random() produces random value between 0 and 1
  y = window.innerWidth*Math.random();

  c.beginPath();
  c.arc(x,y,5,0, Math.PI*2, false);
  c.fill();
}

Animating canvas

function animateCanvas() {
  requestAnimationFrame(animateCanvas);

  c.clearRect(0,0,window.innerWidth,window.innerHeight);

  // drawing code
}

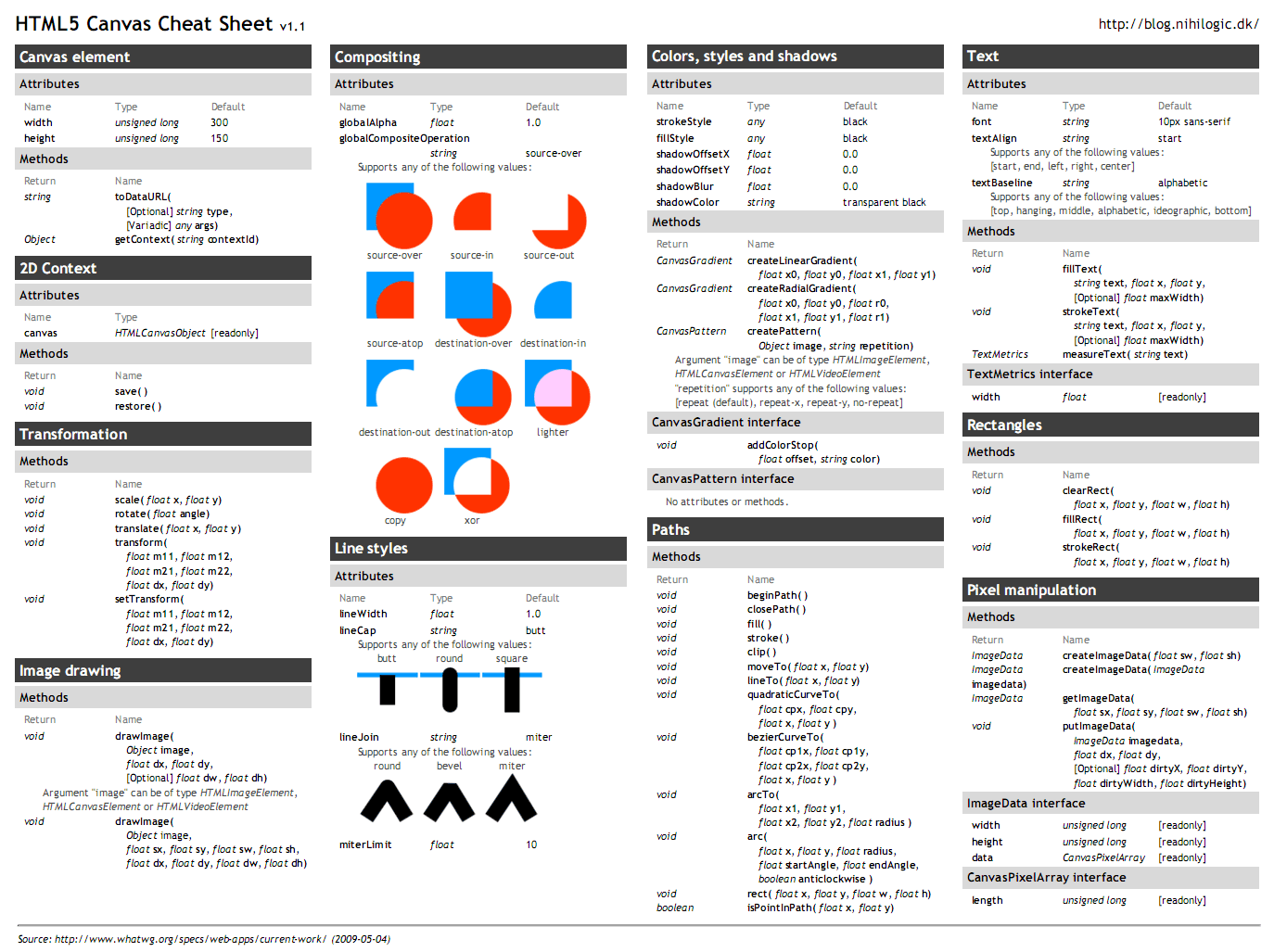

Canvas Cheat Sheet

Canvas Cheat Sheet
